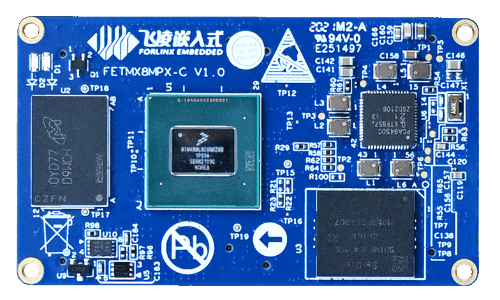

OKMX8MP-C Forlinx

Ultra-thin board-to-board connector (4*80 pin pitch 0.5 mm)

HDMI 1 Supports HDMI 2.0a display resolution up to 4K p30 Supports HDMI 2.1 eARC LVDS 1 Single channel (4 lanes) supports 720 p60 Dual asynchronous channels (8 data, 2clocks) support 1920 x 1200 p60

USB х 2 The CPU contains 2 USB 3.0/2.0 controllers with integrated PHY; Host mode: Support Super-speed (5Gbit/s), high-speed (480Mbit/s), full-speed (12Mbit/s), low-speed (1.5Mbit/s); Device mode: SS/HS/FS; PCIE х 1 Support 1 PCI Express Gen3; MIPI_CSI х 2 Provides two 4-lane MIPI camera serial interfaces, which can work up to 1.5 Gbps; MIPI_DSI х 1 Provides a 4-lane MIPI display serial interface, which can work up to 1.5 Gbps; • 1080 p60; • WUXGA (1920x1200) at 60 Hz; • 1920x1440 at 60 Hz; • UWHD (2560x1080) at 60 Hz; • WQHD (2560x1440) by reduced blanking mode; HDMI х 1 Supports HDMI 2.0a display resolution up to 4Kp30Supports HDMI 2.1 eARC; LVDS х 1 Single channel (4 lanes) supports 720 p60; Dual asynchronous channels (8 data, 2clocks) support 1920x1200 p60; Ethernet х ≤2 Ethernet ≤2 supports 2 RGMII interfaces, one of which supports TSN; SD х ≤2 SD2, 4-bit, support 1.8/3.3V mode switching SD1, 8-bit, only support 1.8V mode; UART х ≤4 The maximum baud rate supported is 4Mbps; SPI х ≤3 The maximum supported rate is 52Mbit/s, master-slave mode can be configured; I2C х ≤5 The highest rate supported in standard mode is 100 Kbit/s; The highest rate supported in fast mode is 400 Kbit/s; CAN х ≤2 The CAN FD protocol is used to implement the CAN communication controller, and the CAN protocol conforms to the CAN 2.0B protocol specification. (CAN FD requires CPU version support); SAI х ≤6 Synchronous Audio Interface (SAI), a full-duplex serial interface that supports frame synchronization, such as I2S, AC97, tdM, and codec/DSP interfaces; SPDIF х ≤1 A standard audio file transmission format, jointly developed by Sony and Philips; PWM х ≤4 With 16-bit counter; QSPI х ≤1 Has been occupied by the core board, connected to the 16MB Nor Flash; JTAG х 1.

4GB LDDR4+ 16GB EMMC
